Disc Spring
Disc Spring | EN 16983 | 10.0×0.5mm | Spring Steel Ck67 (C67S)
Part No.: AXS-DS-00164

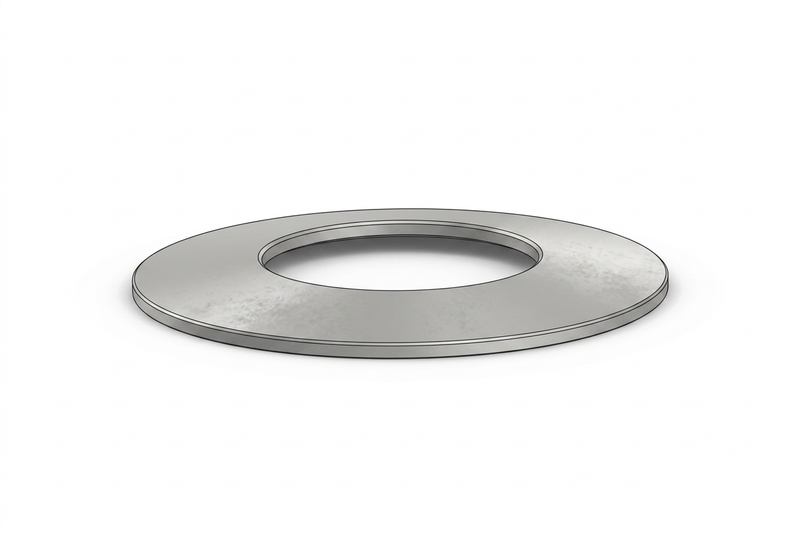

Image for illustration purposes only
Dimensions
Outer diameter Do
10.0 mm
Inner diameter Di
4.2 mm
Thickness t
0.5 mm
Free height L₀
0.75 mm
Compressed height Lₙ
0.56 mm
Load
Load force Fn
294.0 N
Material & Surface
Material
Spring Steel Ck67 (C67S)
Surface finish
Zinc plated
Standard & Classification
Standard
EN 16983
Group
Group 1
SEK
1.30
/ pc
+ 25% VAT
Quantity
Total
SEK —
—
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
540 in stock — ships within 2–4 business days
Disc Spring Material
Carbon steel disc springs are made from Ck67 (C67S) or Ck75 (C75S) spring steel, cold-rolled, hardened and tempered. Operating temperature −40 to +80°C. Zinc-phosphated and oiled as standard.
Surface Finish
Carbon steel disc springs are zinc-phosphated and oiled unless otherwise specified. Stainless steel disc springs have no additional surface protection against corrosion.
Tolerances
Dimensional tolerances per EN 16983 (DIN 2093). Load tolerance varies by group: Group 1 +25%/−7.5%, Group 2 +15%/−7.5% (t ≤ 3 mm) or +10%/−5% (t > 3 mm), Group 3 ±10%.
Disc Spring Groups
Group 1 — t < 1.25 mm
Punched and cold-formed with rounded edges. No bearing surface. Suitable for light to medium loads. Spring force tolerance +25%/−7.5%.
Group 2 — 1.25 mm ≤ t ≤ 6.0 mm
Punched and cold-formed. Da and Di turned with rounded edges. No bearing surface. Spring force tolerance +15%/−7.5% (t ≤ 3.0 mm) or +10%/−5.0% (t > 3.0 mm).
Group 3 — t > 6.0 mm
Cold or hot formed, turned on all sides with rounded edges. Has a bearing surface. Suitable for heavy-duty applications. Spring force tolerance ±10%.
Disc Spring Series
Series A
High spring force with an approximately linear characteristic curve.
Series B
Medium spring force with a slightly degressive characteristic curve.
Series C
Low spring force with a strongly degressive characteristic curve.
Stacking
Springs stacked in series increase deflection; stacked in parallel multiply load capacity. For dynamic applications, use no more than 2–3 springs in parallel. Recommended maximum stack length: Lo ≤ 3 × Da. Lubricate with oil, grease, or molybdenum disulfide paste to reduce friction and wear.
