Extension Spring
Extension Spring | Do 38.1mm | d 4.5mm | L0 114.3mm | Spring Steel
Part No.: AXS-ES-11276

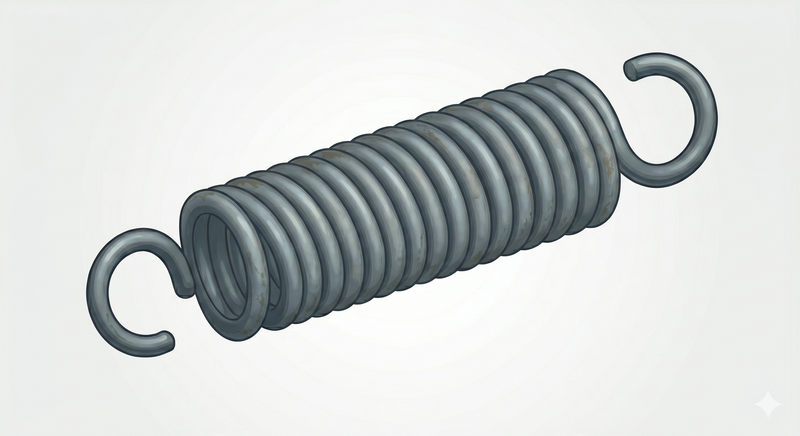

Image for illustration purposes only
Dimensions
WIRE Ø d4.5 mm
OUTER Ø Do38.1 mm
FREE LENGTH L0114.3 mm
MAX EXT LENGTH Ln161.29 mm
ACTIVE COILS—
TOTAL COILS—
Mechanical properties
SPRING RATE R10.49 N/mm
MAX LOAD Fn542.21 N
INITIAL TENSION F048.79 N
WINDINGRight-hand
Material & surface
MATERIALSteel
SURFACE FINISHOil tempered
HOOK TYPE—
STANDARDDIN EN 15800
✓
Manufactured to DIN EN 15800
SEK
177.58
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 10——
11 – 25—−25%
26 – 50—−35%
51 – 99—−51%
100 – 200+—−63%
Quantity
Total
SEK —
—
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
9 remaining — delivered within 2–4 business days
Technical Information
▾
Spring Materials
Music Wire (Spring Steel) Type C
Patented drawn music wire per EN 10270-1 (Type SH). Suitable for static and quasi-static applications. Operating temperature −40 to +80°C. Springs are supplied oiled.
Other materials — Inconel, Incoloy HT800, copper beryllium and spring bronze — available on request.
Surface Finish
Spring steel springs are supplied oiled. Stainless steel springs are supplied dry.
Winding Direction
Standard winding direction is right-hand. When viewed through the spring axis, the wire moves away clockwise.
Tolerances
Dimensional and force tolerances per manufacturer specification.
