Extension Spring
Extension Spring | Do 6.1mm | d 1.04mm | L0 127mm | Stainless Steel
Part No.: AXS-ES-20618

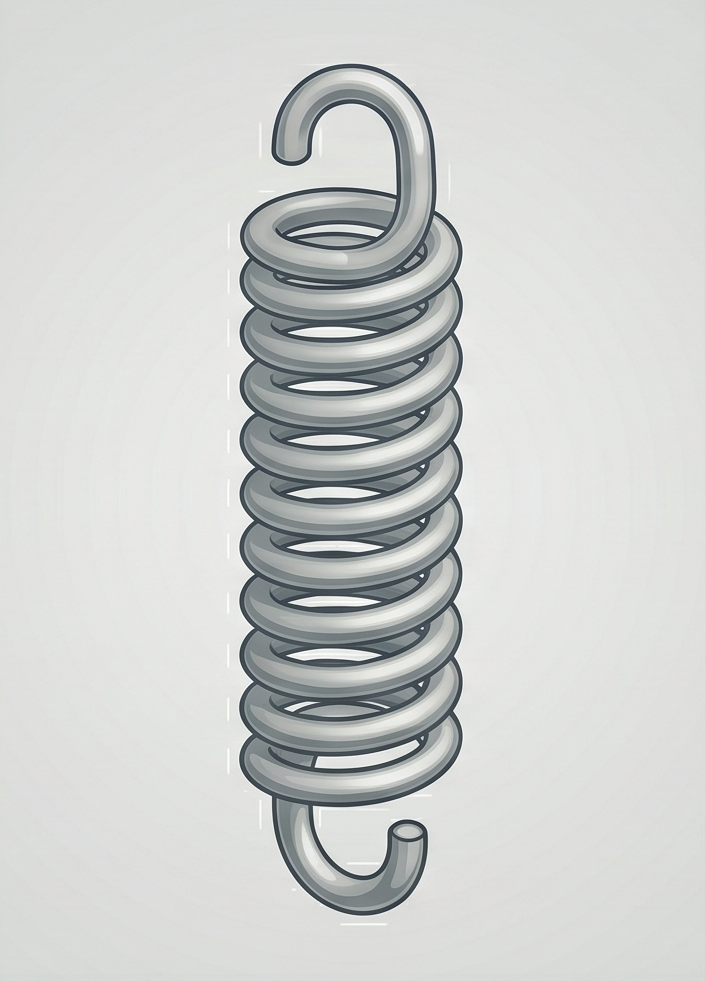

Image for illustration purposes only
Dimensions
WIRE Ø d1.04 mm
OUTER Ø Do6.1 mm
FREE LENGTH L0127.0 mm
MAX EXT LENGTH Ln185.67 mm
ACTIVE COILS—
TOTAL COILS—
Mechanical properties
SPRING RATE R0.67 N/mm
MAX LOAD Fn43.18 N
INITIAL TENSION F03.89 N
WINDINGRight-hand
Material & surface
MATERIALStainless steel
SURFACE FINISHDry
HOOK TYPE—
STANDARDDIN EN 15800
✓
Manufactured to DIN EN 15800
SEK
82.33
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 10——
11 – 25—−25%
26 – 50—−35%
51 – 99—−51%
100 – 200+—−63%
Quantity
Total
SEK —
—
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
22 remaining — delivered within 2–4 business days
Technical Information
▾
Spring Materials
Stainless Steel X10CrNi18-8 (V2A)
Stainless wire per EN 10270-3. Austenitic steel with good corrosion resistance, suitable for humid, marine and mildly chemical environments. Operating temperature −200 to +250°C. Springs are supplied dry.
Other materials — Inconel, Incoloy HT800, copper beryllium and spring bronze — available on request.
Surface Finish
Spring steel springs are supplied oiled. Stainless steel springs are supplied dry.
Winding Direction
Standard winding direction is right-hand. When viewed through the spring axis, the wire moves away clockwise.
Tolerances
Dimensional and force tolerances per manufacturer specification.
