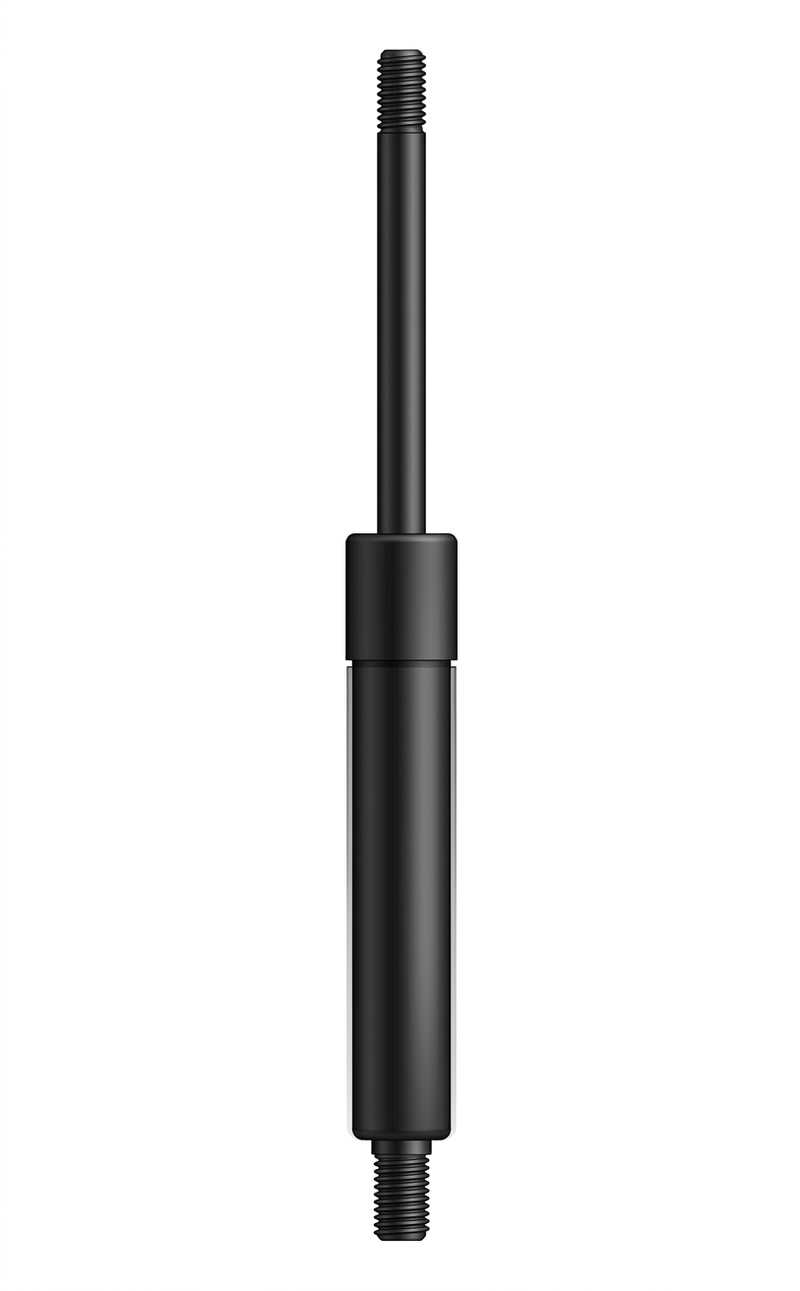

Gas Spring | 8.0×349.0mm | Stroke 140.0mm | 300.0N | Nitrided Steel
Part No. AXS-GS-10291
Image for illustration purposes only
Technical specifications
Construction
N-Series gas struts feature the latest sealing technology for extended service life. They have a black coated body with a durable nitrided rod specified at 144 hours resistance per ASTM-B117 salt spray test and conform to most automotive requirements.
Operating Conditions
Maximum permissible ambient temperature: -30°C to +80°C. Maximum service life: 30,000 load cycles (N-Series and S-Series), dependent on environmental conditions such as dust and abrasive particles. A force loss of approximately 10% can be expected over the service life.
Force & Pressure
The force is set to the customer-specified pressure ex-works and cannot be reset after delivery. For prototyping or variable-weight applications, V-Series and X-Series include a bleed valve to adjust force without dismantling. Each size is pressurised to the maximum available initial force for that range.
Test Force (P1)
The test force P1 is measured with the rod pressed in to 5 mm before the end stop, then relieved to 5 mm before total deflection. The force at this point (P1) is the published specification value.
