Torsion Spring
Torsion Spring | d 2.92mm | Do 36.45mm | 270° | Stainless Steel
Part No.: AXS-TS-20166

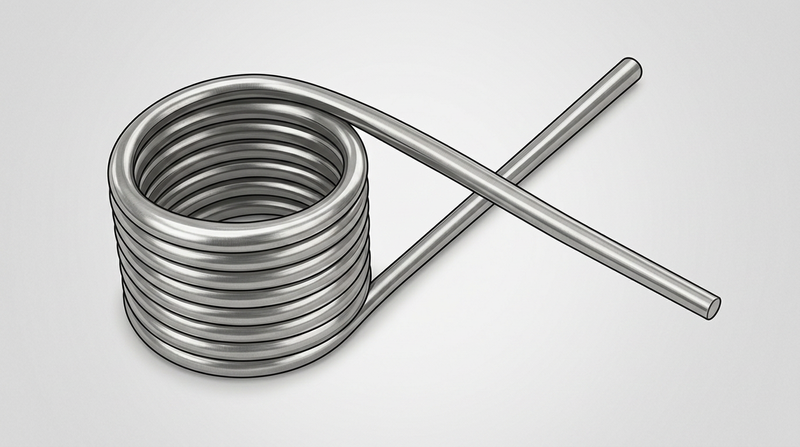

Image for illustration purposes only
Dimensions
Wire ø d2.92 mm
Outer ø Do36.45 mm
Inner ø Di30.61 mm
Mandrel ø Dd23.83 mm
Leg length Ls101.6 mm
Lever arm La50.8 mm
No. of coils n7.75
Mechanical properties
Spring rate R14.875411 Nmm/°
Max. torque Mmax3164.0 Nmm
Max. torsion φmax212.7 °
Leg form3
Leg angle270°
Winding directionRight-hand
Material & surface
MaterialStainless steel
Surface finishUncoated
Weight0
SEK
179.47
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 9——
10 – 49—−10%
50 – 199—−20%
200+—−30%
Quantity
Total
SEK —
—
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
31 remaining — delivered within 2–4 business days
Technical Information
▾
Spring Materials
Stainless Steel X10CrNi18-8 (V2A)
Stainless wire per EN 10270-3. Austenitic steel with good corrosion resistance, suitable for humid, marine and mildly chemical environments. Operating temperature −200 to +250°C. Springs are supplied dry.
Other materials — Inconel, Incoloy HT800, copper beryllium and spring bronze — available on request.
Winding Direction
Standard winding is right-hand. When installing, the applied torque should wind the spring tighter. Left-hand springs available on request.
Leg Form
Leg form codes follow Febrotec / DIN EN 15800. Form 1 = short tangential leg; Form 2 = straight radial leg; Form 3 = long tangential leg. The leg angle specifies the angle between the two legs in the unloaded state.
