Wave Spring
Wave Spring | Do 137.36mm | Di 106.88mm | H 9.86mm | Spring Steel
Part No.: AXS-WS-10033

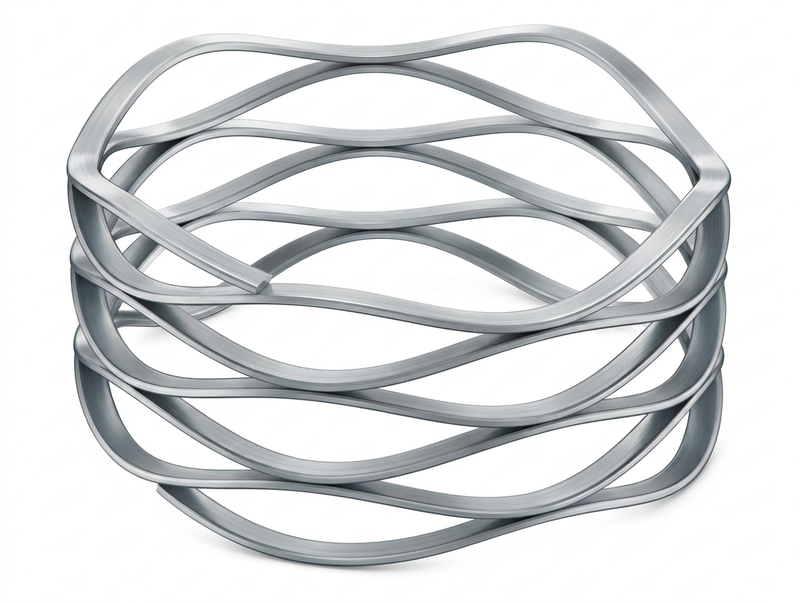

Image for illustration purposes only
Dimensions
Hole diameter A
137.36 mm
Shaft diameter B
106.88 mm
Free length L0
9.86 mm
Working length Ln
4.75 mm
Load & Rate
Force at Loaded Length L1 (N)
876.3 ± 204.6
Spring rate R
171.49 N/mm
Wave Geometry
Strip thickness t
1.35 mm
Strip width b
— mm
Number of waves n
3.0
Number of coils Nt
—
Material
Material
Spring Steel (EN 10270-1 DH)
Classification
Type
Precision
Form
Stamped
Nominal size
137.36x106.88x1.35
Weight
61.9619 g
SEK
308.84
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−20%
11 – 25—−25%
26 – 50—−30%
51 – 99—−40%
100 – 200+—−50%
Quantity
Total
SEK —
—
