Wave Spring

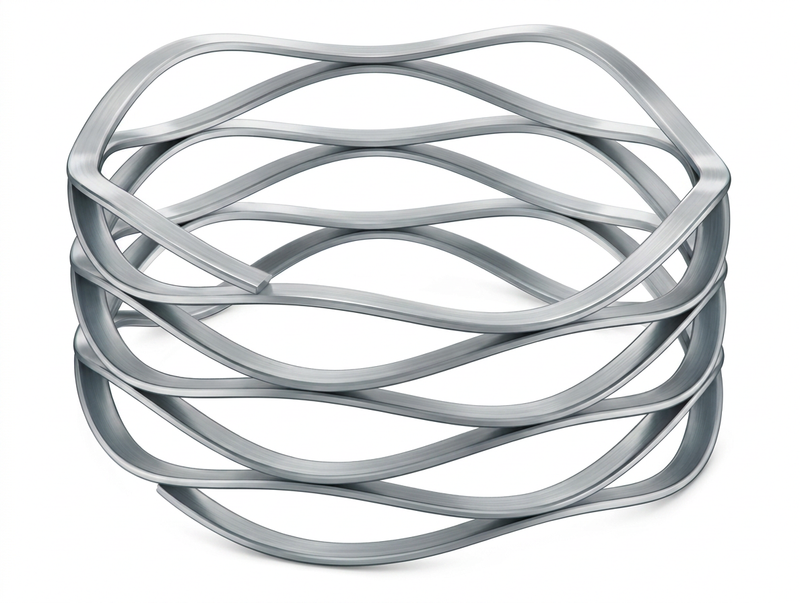

Wave Spring | Do 156.79mm | Di 122.0mm | H 11.76mm | Spring Steel
Part No.: AXS-WS-10035
Image for illustration purposes only
Dimensions
Hole diameter A
156.79 mm
Shaft diameter B
122.0 mm
Free length L0
11.76 mm
Working length Ln
5.59 mm
Load & Rate
Force at Loaded Length L1 (N)
1063.1 ± 253.5
Spring rate R
172.3 N/mm
Wave Geometry
Strip thickness t
1.47 mm
Strip width b
— mm
Number of waves n
3.0
Number of coils Nt
—
Material
Material
Spring Steel (EN 10270-1 DH)
Classification
Type
Precision
Form
Stamped
Nominal size
156.79x122x1.47
Weight
87.904 g
SEK
412.08
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−20%
11 – 25—−25%
26 – 50—−30%
51 – 99—−40%
100 – 200+—−50%
Quantity
Total
SEK —
—
