Wave Spring

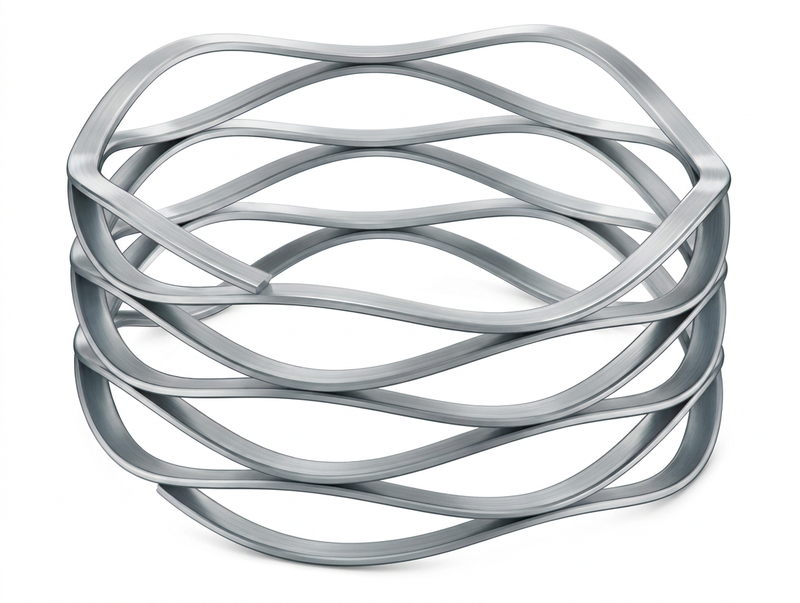

Wave Spring | Do 21.4mm | Di 14.15mm | H 1.6mm | Spring Steel
Part No.: AXS-WS-10069
Image for illustration purposes only
Dimensions
Hole diameter A
21.4 mm
Shaft diameter B
14.15 mm
Free length L0
1.6 mm
Working length Ln
0.75 mm
Load & Rate
Force at Loaded Length L1 (N)
140 ± 28
Spring rate R
164.71 N/mm
Wave Geometry
Strip thickness t
0.3 mm
Strip width b
— mm
Number of waves n
3.0
Number of coils Nt
—
Material
Material
Spring Steel (EN 10270-1 SH)
Classification
Type
Precision
Form
Stamped
Nominal size
21.8x14x0.3
Weight
0.39 g
SEK
51.69
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−20%
11 – 25—−25%
26 – 50—−30%
51 – 99—−40%
100 – 200+—−50%
Quantity
Total
SEK —
—
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
27433 in stock — ships within 2–4 business days
