Wave Spring

Wave Spring | Do 34.5mm | Di 28.3mm | H 4.0mm | Spring Steel

Part No.: AXS-WS-10099

Wave Spring | Do 34.5mm | Di 28.3mm | H 4.0mm | Spring Steel

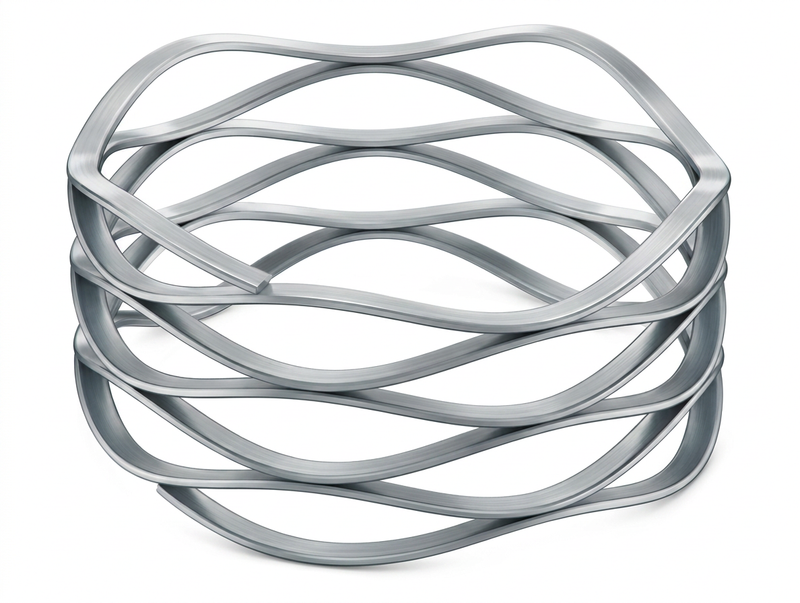

Image for illustration purposes only

Dimensions
Hole diameter A 34.5 mm
Shaft diameter B 28.3 mm
Free length L0 4.0 mm
Working length Ln 2.2 mm
Load & Rate
Force at Loaded Length L1 (N) 79
Spring rate R 43.89 N/mm
Wave Geometry
Strip thickness t 0.4 mm
Strip width b — mm
Number of waves n 3.0
Number of coils Nt —
Material
Material Spring Steel (EN 10270-1 SH)
Classification
Type Compression
Form Stamped
Nominal size 34.5x28.3x0.4
Weight 0.9602 g
SEK 75.36 / pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−20%
11 – 25—−25%
26 – 50—−30%
51 – 99—−40%
100 – 200+—−50%
Quantity
Total
SEK —
—

You can order any quantity at the 100–200+ price. Need larger volumes? Contact us for a quote.

Can't find what you need? We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
📐
Request CAD fileTechnical drawing for CAD/manufacturing
📦 Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
4478 in stock — ships within 2–4 business days
