Wave Spring
Wave Spring | Do 89.8mm | Di 72.0mm | H 4.0mm | Spring Steel
Part No.: AXS-WS-10160

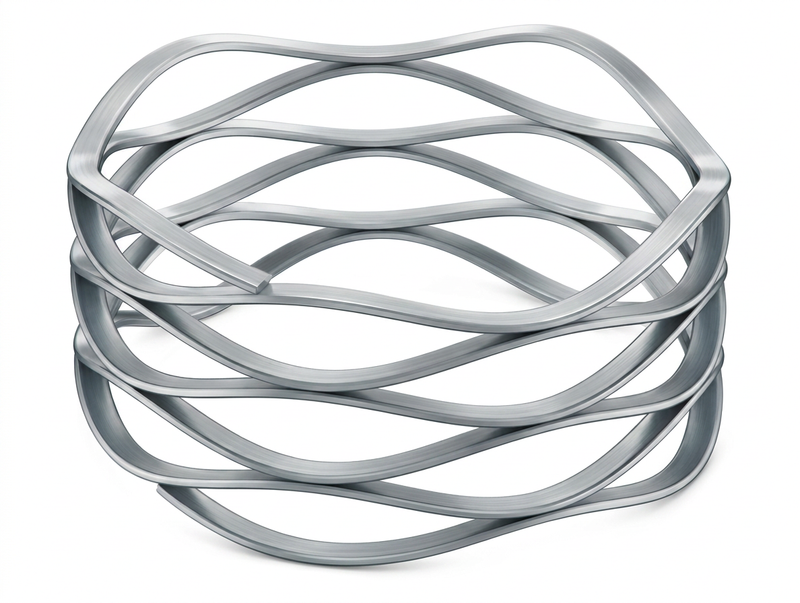

Image for illustration purposes only
Dimensions
Hole diameter A
89.8 mm
Shaft diameter B
72.0 mm
Free length L0
4.0 mm
Working length Ln
2.4 mm
Load & Rate
Force at Loaded Length L1 (N)
533
Spring rate R
333.13 N/mm
Wave Geometry
Strip thickness t
0.8 mm
Strip width b
— mm
Number of waves n
4.0
Number of coils Nt
—
Material
Material
Spring Steel (EN 10270-1 SH)
Classification
Type
Compression
Form
Stamped
Nominal size
89.8x72x0.8
Weight
14.2052 g
SEK
330.04
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−20%
11 – 25—−25%
26 – 50—−30%
51 – 99—−40%
100 – 200+—−50%
Quantity
Total
SEK —
—
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
31 remaining — delivered within 2–4 business days
