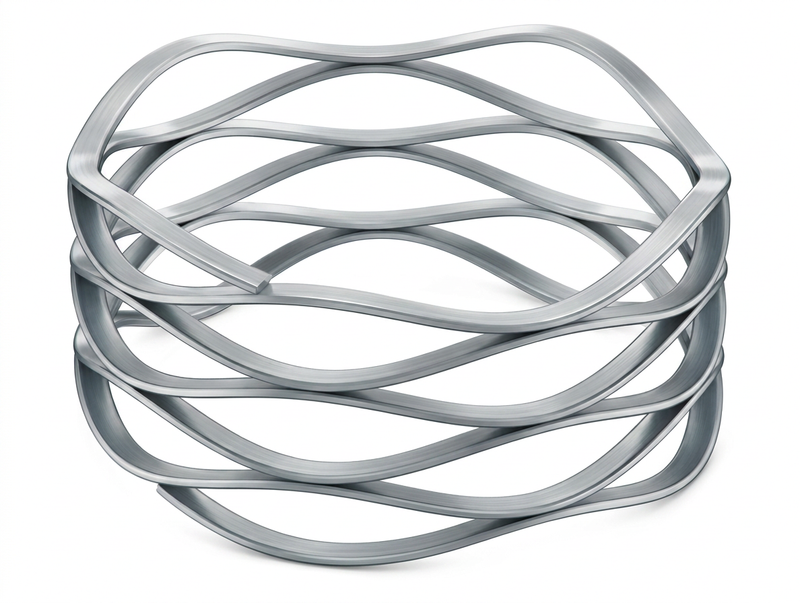

Wave Spring
Wave Spring | Do 107.0mm | Di 97.0mm | H 4.2mm | Spring Steel
Part No.: AXS-WS-10166
Image for illustration purposes only
Dimensions
Hole diameter A
107.0 mm
Shaft diameter B
97.0 mm
Free length L0
4.2 mm
Working length Ln
1.85 mm
Load & Rate
Force at Loaded Length L1 (N)
380
Spring rate R
161.7 N/mm
Wave Geometry
Strip thickness t
0.5 mm
Strip width b
— mm
Number of waves n
7.0
Number of coils Nt
—
Material
Material
Spring Steel (EN 10270-1 SH)
Classification
Type
Compression
Form
Stamped
Nominal size
109x99x0.5
Weight
6.23 g
SEK
506.89
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−20%
11 – 25—−25%
26 – 50—−30%
51 – 99—−40%
100 – 200+—−50%
Quantity
Total
SEK —
—
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
238 in stock — ships within 2–4 business days
