Compression Spring
Compression Spring | Do 8.3mm | d 1.1mm | L0 44mm | Spring Steel
Part No.: AXS-CS-11799

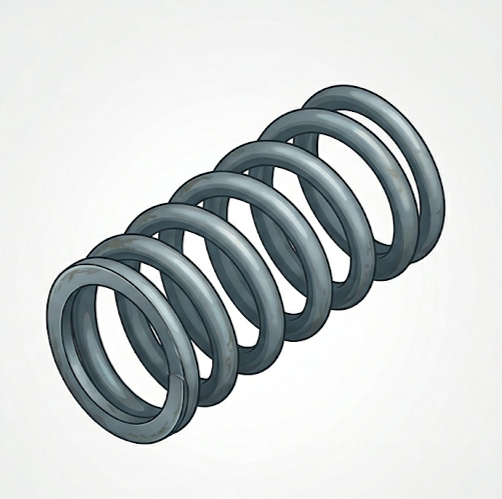

Image for illustration purposes only
SEK
43.70
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−11%
11 – 25—−21%
26 – 50—−29%
51 – 99—−39%
100 – 200+—−55%
Quantity
You can order any quantity at the 100–200+ price. Need larger volumes? Contact us for a quote.
Total
SEK —
—
Only __n__ in stock — quantity adjusted.
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
142 in stock — ships within 2–4 business days
Dimensions
WIRE Ø d1.1 mm
OUTER Ø Do8.3 mm
Inner Ø (Di)6.1 mm
MIN LENGTH Ln20.9 mm
FREE LENGTH L044.0 mm
Mechanical properties
SPRING RATE R2.28 N/mm
FORCE AT Ln44.29 N
WINDINGRight-hand
Material & surface
MATERIALSteel
SURFACE FINISHOil tempered
END TYPEClosed & Ground
STANDARDDIN EN 15800
Technical Information
▾
Spring Materials
Music Wire (Spring Steel) Type C
Patented drawn music wire per EN 10270-1 (Type SH). Suitable for static and quasi-static applications. Operating temperature −40 to +80°C. Springs are supplied oiled.
Other materials — Inconel, Incoloy HT800, copper beryllium and spring bronze — available on request.
Surface Finish
Spring steel springs are supplied oiled. Stainless steel springs are supplied dry.
Winding Direction
Standard winding direction is right-hand. When viewed through the spring axis, the wire moves away clockwise.
Tolerances
Dimensional and force tolerances according to DIN EN 15800, Grade 2.
