Compression Spring
Compression Spring | Do 18.5mm | d 2.5mm | L0 61mm | Spring Steel
Part No.: AXS-CS-13222

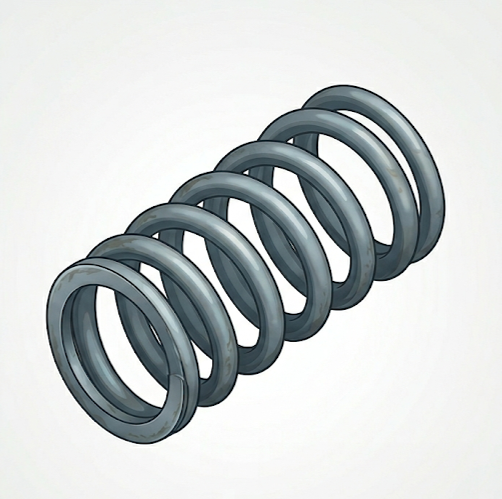

Image for illustration purposes only
SEK
88.43
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−11%
11 – 25—−21%
26 – 50—−29%
51 – 99—−39%
100 – 200+—−55%
Out of stock — contact us
This spring is currently not in stock. Contact us and we will get back to you with availability and lead time.
Contact us →
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
Out of stock — contact us
Dimensions
WIRE Ø d2.5 mm
OUTER Ø Do18.5 mm
Inner Ø (Di)13.5 mm
MIN LENGTH Ln24.85 mm
FREE LENGTH L061.0 mm
Mechanical properties
SPRING RATE R11.51 N/mm
FORCE AT Ln364.81 N
WINDINGRight-hand
Material & surface
MATERIALSteel
SURFACE FINISHOil tempered
END TYPEClosed & Ground
STANDARDDIN EN 15800
Technical Information
▾
Spring Materials
Music Wire (Spring Steel) Type C
Patented drawn music wire per EN 10270-1 (Type SH). Suitable for static and quasi-static applications. Operating temperature −40 to +80°C. Springs are supplied oiled.
Other materials — Inconel, Incoloy HT800, copper beryllium and spring bronze — available on request.
Surface Finish
Spring steel springs are supplied oiled. Stainless steel springs are supplied dry.
Winding Direction
Standard winding direction is right-hand. When viewed through the spring axis, the wire moves away clockwise.
Tolerances
Dimensional and force tolerances according to DIN 2076.
