Compression Spring

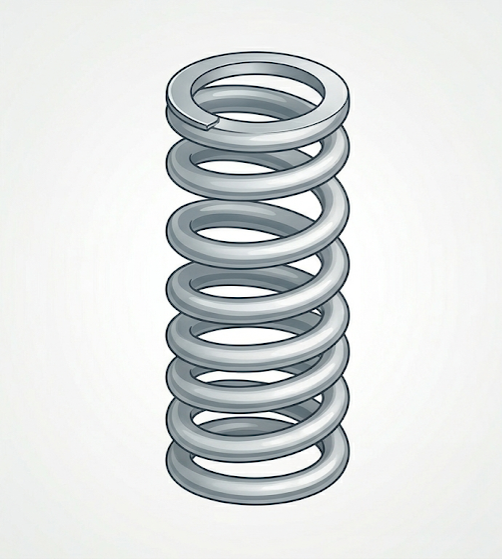

Compression Spring | Do 18.29mm | d 1.6mm | L0 76.2mm | Stainless Steel
Part No.: AXS-CS-22496
Image for illustration purposes only
SEK
60.83
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−11%
11 – 25—−21%
26 – 50—−29%
51 – 99—−39%
100 – 200+—−55%
Quantity
You can order any quantity at the 100–200+ price. Need larger volumes? Contact us for a quote.
Total
SEK —
—
Only __n__ in stock — quantity adjusted.
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
713 in stock — ships within 2–4 business days
Dimensions
WIRE Ø d1.6 mm
OUTER Ø Do18.29 mm
Inner Ø (Di)15.09 mm
MIN LENGTH Ln18.26 mm
FREE LENGTH L076.2 mm
Mechanical properties
SPRING RATE R1.3 N/mm
FORCE AT Ln51.88 N
WINDINGRight-hand
Material & surface
MATERIALStainless steel
SURFACE FINISHDry
END TYPEClosed & Ground
STANDARDDIN EN 15800
Technical Information
▾
Spring Materials
Stainless Steel X10CrNi18-8 (V2A)
Stainless wire per EN 10270-3. Austenitic steel with good corrosion resistance, suitable for humid, marine and mildly chemical environments. Operating temperature −200 to +250°C. Springs are supplied dry.
Other materials — Inconel, Incoloy HT800, copper beryllium and spring bronze — available on request.
Surface Finish
Spring steel springs are supplied oiled. Stainless steel springs are supplied dry.
Winding Direction
Standard winding direction is right-hand. When viewed through the spring axis, the wire moves away clockwise.
Tolerances
Tolerances for outside diameter and spring rate/force are as follows:
| Outside Diameter Da (mm) | Tolerance Da (mm) | Tolerance Spring Rate/Force |
|---|---|---|
| 1.45 – 3.02 | ±0.08 | ±10% |
| 3.05 – 6.10 | ±0.13 | ±10% |
| 6.12 – 12.70 | ±0.20 | ±10% |
| 12.73 – 25.40 | ±0.38 | ±10% |
| 25.43 – 31.12 | ±0.51 | ±10% |
| 31.14 – 37.08 | ±0.76 | ±10% |
| 37.11 – 50.08 | ±1.02 | ±10% |
