Compression Spring
Compression Spring | Do 9.6mm | d 1.6mm | L0 27mm | Stainless Steel
Part No.: AXS-CS-22535

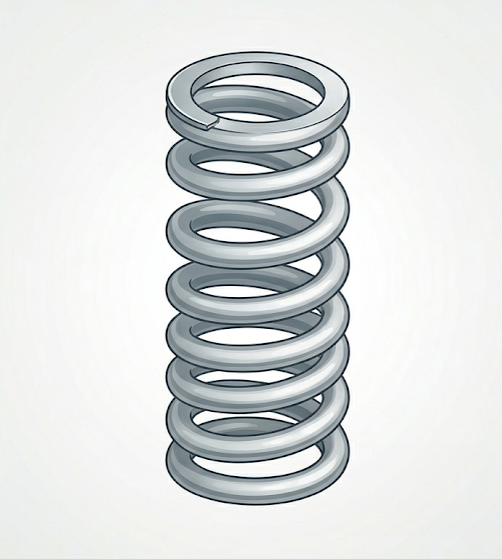

Image for illustration purposes only
SEK
51.68
/ pc
+ 25% VAT
Volume pricing
QuantityUnit priceSaving
1 – 5——
6 – 10—−11%
11 – 25—−21%
26 – 50—−29%
51 – 99—−39%
100 – 200+—−55%
Quantity
You can order any quantity at the 100–200+ price. Need larger volumes? Contact us for a quote.
Total
SEK —
—
Only __n__ in stock — quantity adjusted.
Can't find what you need?
We deliver springs to any specification. Custom dimensions, materials, quantities or specific shipping requirements — just ask.
Get in touch →
Request CAD fileTechnical drawing for CAD/manufacturing
📦
Shipped from our partner Febrotec, Germany. Typically delivered within 2–4 business days.
76 remaining — delivered within 2–4 business days
Dimensions
WIRE Ø d1.6 mm
OUTER Ø Do9.6 mm
Inner Ø (Di)6.4 mm
MIN LENGTH Ln16.58 mm
FREE LENGTH L027.0 mm
Mechanical properties
SPRING RATE R13.18 N/mm
FORCE AT Ln109.76 N
WINDINGRight-hand
Material & surface
MATERIALStainless steel
SURFACE FINISHDry
END TYPEClosed & Ground
STANDARDDIN EN 15800
Technical Information
▾
Spring Materials
Stainless Steel X10CrNi18-8 (V2A)
Stainless wire per EN 10270-3. Austenitic steel with good corrosion resistance, suitable for humid, marine and mildly chemical environments. Operating temperature −200 to +250°C. Springs are supplied dry.
Other materials — Inconel, Incoloy HT800, copper beryllium and spring bronze — available on request.
Surface Finish
Spring steel springs are supplied oiled. Stainless steel springs are supplied dry.
Winding Direction
Standard winding direction is right-hand. When viewed through the spring axis, the wire moves away clockwise.
Tolerances
Dimensional and force tolerances according to DIN EN 15800, Grade 2.
